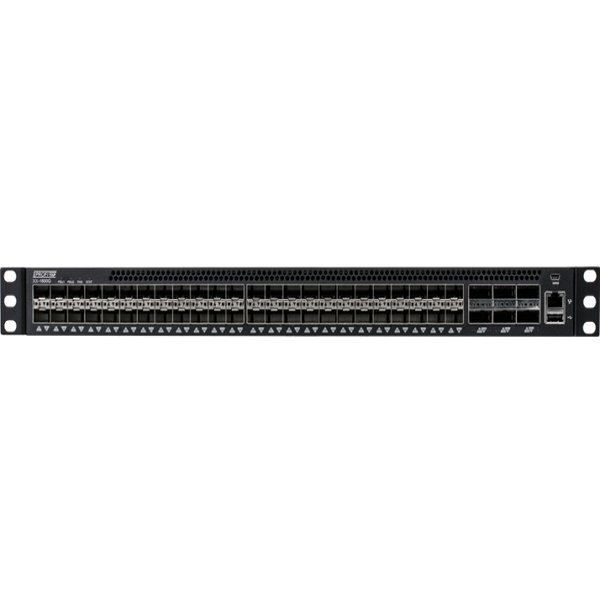

ProfiTAP XX-720G/1800G/2800G 1/10/40/100G 網路流量複製器

ProfiTAP XX-720G/1800G/2800G是一款高密度網路流量複製器，支援48x 1/10/25G，與16x 40/100G埠，40/100G埠支援分離模式設定，可使用Fanout光纖轉換為4個10G埠。標準L4流量複製器功能，支援L2-L4封包過濾、LB負載平衡、Tag/De-Tag等功能。可依照預算與需求，購置適當埠數授權，需要時再購置更多埠數授權，以節省初期成本支出。除埠數之外，其他功能不需要再添購授權。

原廠: ProfiTAP

ProfiTAP XX-720G/1800G/2800G是一款高密度網路流量複製器，支援48x 1/10/25G，與16x 40/100G埠，40/100G埠支援分離模式設定，可使用Fanout光纖轉換為4個10G埠。標準L4流量複製器功能，支援L2-L4封包過濾、LB負載平衡、Tag/De-Tag等功能。可依照預算與需求，購置適當埠數授權，需要時再購置更多埠數授權，以節省初期成本支出。除埠數之外，其他功能不需要再添購授權。

    • 產品說明

    Profitap XX-720G/1800G/2800G NPB系列流量複製器，提供流量匯聚，在非常高的頻寬內進行流量複製，以及過濾和負載平衡端口監控和分析方案。

    XX-Manager圖形化操作軟體普遍使用於ProfiTAP的NPB系列產品，包括XX-1800G，專為流量匯聚，過濾、Load Balance和多個10G / 25G / 40G / 100G輸入的流量導向規則，用於極高頻寬端口監控和分析場景。實際畫面如下:

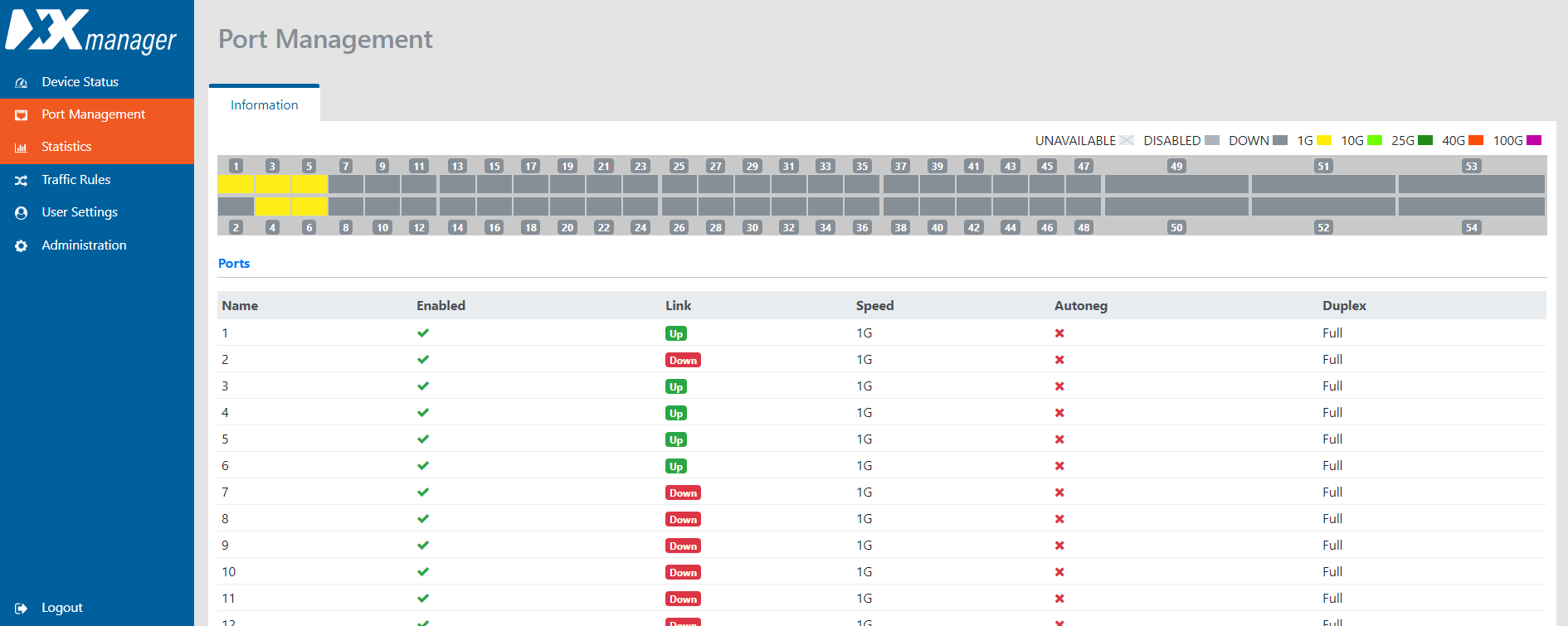

    (圖一) Port管理介面

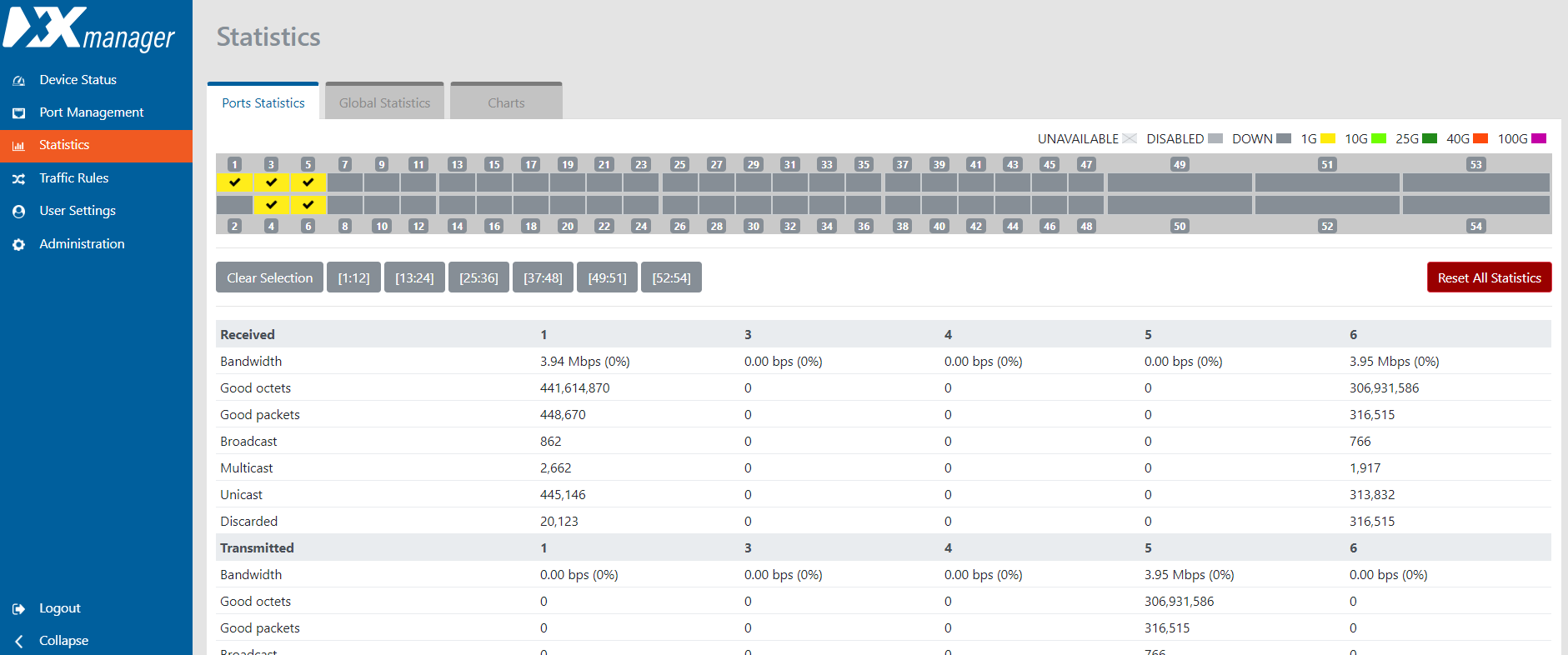

    (圖二) 流量統計

    (圖三) 可自定義的過濾流量

    (圖四) 選擇輸入/輸出端口

    (圖五) 選擇過濾條件


    • 流量匯聚，複製，過濾，負載平衡（Any to Any，Any to Many，Many to Many）
    • License 24 或48 port 1/10/25G加上2 或  4-8  port 40/100G，降低購入門檻，原機可擴充啟用介面數量。
    • 本地和遠端管理（CLI，GUI，SNMP，Syslog）
    • TACACS +身份驗證
    • 雙備援電源系統(RPS)，可熱插拔以及風扇模塊，提供AC或DC版本
    • 強大的過濾功能（Layer 2 ~ Layer 4)
    • 支援重新計算來源流量(Replication)，不同分流規則，不會因為相同來源流量已被次序高的規則使用，而無法給次序低的規則使用限制，使用者可以直觀設定而不用擔心次序問題。
    • 靈活的使用者存取控制
    • 1U空間中的高密度，吞吐量高達2800G(XX-2800G)
    • 1G、10G、25G、40G、100G流量監控
    Specifications
    Full Ports Licence 48 x 25G SFP28、6 x 100G QSFP28、All features incl.
    Economy Licence 24 x 25G SFP28、2 x 100G QSFP28、All features incl.
    Footprint 1U
    Power 100-240 VAC or -40V–-60 VDC
    CPU 2.4GHz Intel quad-core
    ASIC 2.0Tbps

    Part Numbers

    Part Number Description
    XX-720G - HD Network Packet Broker
    XX-720G-242-AC HD NPB, 24x1G/10G ports activated + 2x40G ports activated, 2 power supplies, AC power (incl. management cable) support aggregation, replication, filtering l2-l4, load balancing
    XX-720G-242-DC HD NPB, 24x1G/10G ports activated + 2x40G ports activated, 2 power supplies, CC power (incl. management cable) support aggregation, replication, filtering l2-l4, load balancing
    XX-720G-486-AC HD NPB, 48x1G/10G ports activated + 6x40G ports activated, 2 power supplies, AC power (incl. management cable) support aggregation, replication, filtering l2-l4, load balancing
    XX-720G-486-DC HD NPB, 48x1G/10G ports activated + 6x40G ports activated, 2 power supplies, DC power (incl. management cable) support aggregation, replication, filtering l2-l4, load balancing
    XX-720G-UNLK HD NPB, upgrade from half port to full port licence
    XX-1800G - HD Network Packet Broker
    XX-1800G-242-AC HD NPB, 24x10G/25G ports activated + 2x40G/100G ports activated, 2 power supplies, AC power (incl. management cable) support aggregation, replication, filtering l2-l4, load balancing
    XX-1800G-242-DC HD NPB, 24x10G/25G ports activated + 2x40G/100G ports activated, 2 power supplies, DC power (incl. management cable) support aggregation, replication, filtering l2-l4, load balancing
    XX-1800G-486-AC HD NPB, 48x10G/25G ports activated + 6x40G/100G ports activated, 2 power supplies, AC power (incl. management cable) support aggregation, replication, filtering l2-l4, load balancing
    XX-1800G-486-DC HD NPB, 48x10G/25G ports activated + 6x40G/100G ports activated, 2 power supplies, DC power (incl. management cable) support aggregation, replication, filtering l2-l4, load balancing
    XX-1800G-UNLK HD NPB, upgrade from half port to full port licence
    XX-2800G - HD Network Packet Broker
    XX-2800G-248-AC HD NPB, 24x10G/25G ports activated + 8x40G/100G ports activated, 2 power supplies, AC power (incl. management cable) support aggregation, replication, filtering l2-l4, load balancing
    XX-2800G-248-DC HD NPB, 24x10G/25G ports activated + 8x40G/100G ports activated, 2 power supplies, DC power (incl. management cable) support aggregation, replication, filtering l2-l4, load balancing
    XX-2800G-4816-AC HD NPB, 48x10G/25G ports activated + 16x40G/100G ports activated, 2 power supplies, AC power (incl. management cable) support aggregation, replication, filtering l2-l4, load balancing
    XX-2800G-4816-DC HD NPB, 48x10G/25G ports activated + 16x40G/100G ports activated, 2 power supplies, DC power (incl. management cable) support aggregation, replication, filtering l2-l4, load balancing
    XX-2800G-UNLK HD NPB, upgrade from half port to full port licence
