fb4CGg3@VU FPGA卡
商品簡述：
-

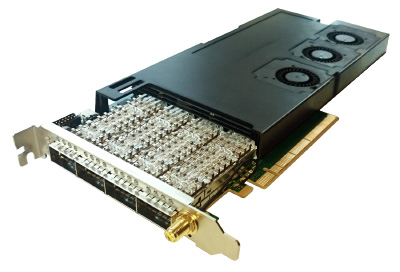

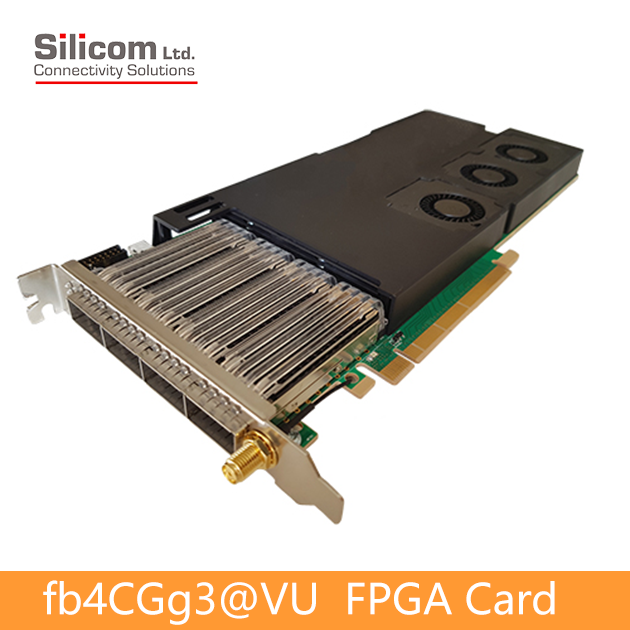

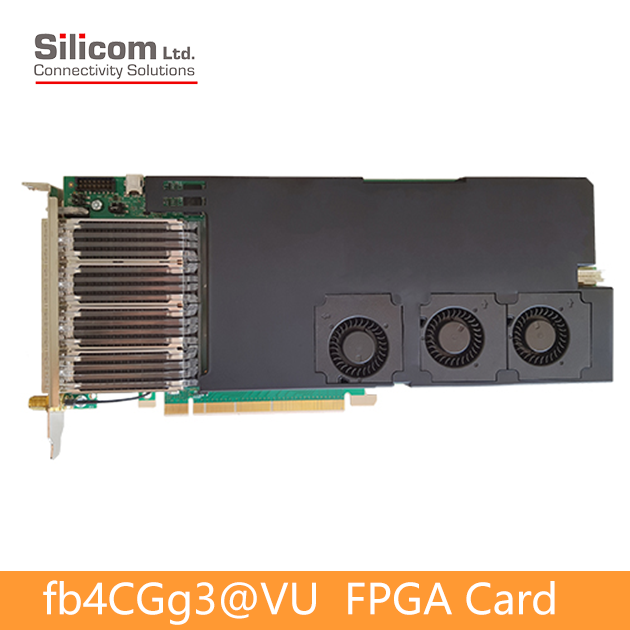

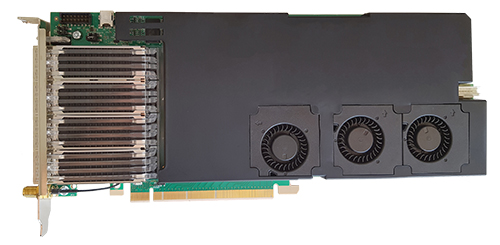

Silicom fb4CGg3@VU 系列 FPGA 加速卡
四埠 QSFP28 100 Gigabit—基於Xilinx® Virtex Ultrascale
fb4CGg3@VU/VU+ 系列是一款高性能 OEM 硬體平台，旨在透過其四個 QSFP28 插槽提供 10/40/25/50/100 Gigabit 乙太網路功能。標準配置基於 Xilinx® Virtex UltraScale+ VU9P FPGA，為四埠 QSFP28 介面提供充足的處理能力。該卡還提供多種不同的 FPGA 選擇，以針對預期的應用提供靈活性——這包括 Xilinx 的 Virtex Ultrascale 以及 Virtex Ultrascale+ 系列。
這張卡上安裝了 2 組 64-bit DDR4 2400MT/s 4GB 記憶體，總計 8 GB。此外，它還具備 2 個 SODIMM 插槽，可搭配 DDR4 或 QDRII+ 模組使用，以滿足低延遲應用的需求。
-
fb4CGg3@VU series FPGA Card
Quad Port QSFP28 100 Gigabit Xilinx® Virtex Ultrascale
- 搭載Xilinx® Virtex UltraScale+™ VU9P FPGA
- 4 x QSFP28 埠口
- 2 x 64-bit DDR4，傳輸速率 2400MT/s
- 2 x SODIMM 擴充插槽（選配）
- 內建 Configuration Flash RAM，用於開機鏡像 (Boot Images) 加載
- PCIe Form-factor（3/4 長度、標準高度）
- 板載電壓 (Power) 與溫度 (Temperature) 感測器
- FPGA 控制之 Link 與 Status 狀態指示燈 (LEDs)
- 被動式散熱 (Passive Cooling)（選配）
-
fb4CGg3@VU series FPGA Card
Quad Port QSFP28 100 Gigabit Xilinx® Virtex Ultrascale
Network Interface
IEEE standard: IEEE 802.3 10GE, 40GE, 25GE, 100GE Interfaces: - Physical interface: 4 x QSFP28 slots
- 2 port variant available
- Supports QSFP+/QSFP28 modules: including fan-out modules for 4x10G/4x25GE per slot, Multimode SR4 (850nm), singlemode LR4 (1310nm), singlemode PSM4 (1310nm), multimode LRM4 (1310 nm), or Direct Attached Copper (Twinax) and others
- Data rate: 16×10, 4×40, 16×25, 4×100 Gbps
Host Interface
PCI bus: - 16 lanes PCIe Gen1/Gen2/Gen3
- PCIe compliant
General Technical Specifications
Configuration: - 16-bit fast parallel programming interface from supporting preprogrammed controller
- Configuration flash supports two boot images with automatic fallback to fail safe image if first image fails
- Upload of FPGA configuration to flash via PCIe
- Support for encrypted FGPA bit file (optional)
On-board Memory: - 2 x 64-bit DDR4@2400MT/s 4 GB
- 2 x Optional SODIMM
- 64-bit DDR4 @2400MT/s 4 GB
- 36-bit QDRII+ @1266MT/s 288 Mb
- 8 MB user configurable space in flash RAM for permanent storage
- 256 MB Configuration flash RAM for boot images
On-board Clock:
Up to:- PCIe clock: 100 MHz
- 200 MHz clock
- 50 MHz clock
- 161.13 MHz clock
Environment: - Physical dimensions: 3/4 length, standard height PCIe
- Power consumption: <10W with uninitialized FPGA
- Operating temperature: 0 – 55°C, 30 – 130°F
- Operating humidity: 20 – 80%
- Hardware compliance: RoHS, CE
- Active cooling (heat sink with fan)
- Passive cooling (optional)
Additional Board Support: - On-board power and temperature sensors
- Board status LEDs
- User configurable dual color LED
- FPGA controlled Link and Activity LED for each port
- PPS clock synchronization connector
- PCIe AUX power connector and cable
Additional Intellectual Property Modules: - Flash configuration I/F
- 2×8 lane PCIe
- DDR4 Memory controller
- I2C controller
- SmartNIC framework (optional)
- Ultra low latency 10GE MAC (optional)
- TCP-offload engine (optional)
Ordering Example: fb4CGg3@VU09P-3-SS-1A
4-port card with the following configuration:- VU09P Virtex UltraScale+ FPGA
- Speedgrade -3 (fastest available)
- 288 Mb x36 SQIVe RAM mounted in SoDimm slot A
- 288 Mb x36 SQIVe RAM mounted in SoDimm slot B
- SMA connector for PPS signal on front panel
- Heat sink with integrated UL/CE approved fan
-
fb4CGg3@VU series FPGA Card
Quad Port QSFP28 100 Gigabit Xilinx® Virtex Ultrascale
P/N
Description
fb4CGg3@VU080-2-00-1A Virtex UltraScale VU80-2, No SODIMMs fb4CGg3@VU080-2-DD-1A Virtex UltraScale VU80-2, 2x4GB DDR4 SODIMMs fb4CGg3@VU125-2-00-1A Virtex UltraScale VU125-2, No SODIMMs fb4CGg3@VU125-2-DD-1A Virtex UltraScale VU125-2, 2x4GB DDR4 SODIMMs fb4CGg3@VU190-2-00-1A Virtex UltraScale VU190-2, No SODIMMs fb4CGg3@VU190-2-DD-1A Virtex UltraScale VU190-2, 2x4GB DDR4 SODIMMs fb4CGg3@VU07P-2-00-1A Virtex UltraScale+ VU7P-2, No SODIMMs fb4CGg3@VU07P-2-DD-1A Virtex UltraScale+ VU7P-2, 2x4GB DDR4 SODIMMs fb4CGg3@VU09P-2-00-1A Virtex UltraScale+ VU9P-2, No SODIMMs fb4CGg3@VU09P-2-DD-1A Virtex UltraScale+ VU9P-2, 2x4GB DDR4 SODIMMs fb4CGg3@VU09P-2-RR-1A Virtex UltraScale+ VU9P-2, 2xQDRII RAM (x36, 288Mb) fb4CGg3@VU09P-3-00-1A Virtex UltraScale+ VU9P-3, No SODIMMs fb4CGg3@VU09P-3-DD-1A Virtex UltraScale+ VU9P-3, 2x4GB DDR4 SODIMMs fb4CGg3@VU09P-3-RR-1A Virtex UltraScale+ VU9P-3, 2xQDRII RAM (x36, 288Mb)
-
產品說明
Silicom fb4CGg3@VU 系列 FPGA 加速卡
四埠 QSFP28 100 Gigabit—基於Xilinx® Virtex Ultrascale
fb4CGg3@VU/VU+ 系列是一款高性能 OEM 硬體平台，旨在透過其四個 QSFP28 插槽提供 10/40/25/50/100 Gigabit 乙太網路功能。標準配置基於 Xilinx® Virtex UltraScale+ VU9P FPGA，為四埠 QSFP28 介面提供充足的處理能力。該卡還提供多種不同的 FPGA 選擇，以針對預期的應用提供靈活性——這包括 Xilinx 的 Virtex Ultrascale 以及 Virtex Ultrascale+ 系列。
這張卡上安裝了 2 組 64-bit DDR4 2400MT/s 4GB 記憶體，總計 8 GB。此外，它還具備 2 個 SODIMM 插槽，可搭配 DDR4 或 QDRII+ 模組使用，以滿足低延遲應用的需求。
-
功能特色
fb4CGg3@VU series FPGA Card
Quad Port QSFP28 100 Gigabit Xilinx® Virtex Ultrascale
- 搭載Xilinx® Virtex UltraScale+™ VU9P FPGA
- 4 x QSFP28 埠口
- 2 x 64-bit DDR4，傳輸速率 2400MT/s
- 2 x SODIMM 擴充插槽（選配）
- 內建 Configuration Flash RAM，用於開機鏡像 (Boot Images) 加載
- PCIe Form-factor（3/4 長度、標準高度）
- 板載電壓 (Power) 與溫度 (Temperature) 感測器
- FPGA 控制之 Link 與 Status 狀態指示燈 (LEDs)
- 被動式散熱 (Passive Cooling)（選配）
-
技術規格
fb4CGg3@VU series FPGA Card
Quad Port QSFP28 100 Gigabit Xilinx® Virtex Ultrascale
Network Interface
IEEE standard: IEEE 802.3 10GE, 40GE, 25GE, 100GE Interfaces: - Physical interface: 4 x QSFP28 slots
- 2 port variant available
- Supports QSFP+/QSFP28 modules: including fan-out modules for 4x10G/4x25GE per slot, Multimode SR4 (850nm), singlemode LR4 (1310nm), singlemode PSM4 (1310nm), multimode LRM4 (1310 nm), or Direct Attached Copper (Twinax) and others
- Data rate: 16×10, 4×40, 16×25, 4×100 Gbps
Host Interface
PCI bus: - 16 lanes PCIe Gen1/Gen2/Gen3
- PCIe compliant
General Technical Specifications
Configuration: - 16-bit fast parallel programming interface from supporting preprogrammed controller
- Configuration flash supports two boot images with automatic fallback to fail safe image if first image fails
- Upload of FPGA configuration to flash via PCIe
- Support for encrypted FGPA bit file (optional)
On-board Memory: - 2 x 64-bit DDR4@2400MT/s 4 GB
- 2 x Optional SODIMM
- 64-bit DDR4 @2400MT/s 4 GB
- 36-bit QDRII+ @1266MT/s 288 Mb
- 8 MB user configurable space in flash RAM for permanent storage
- 256 MB Configuration flash RAM for boot images
On-board Clock:
Up to:- PCIe clock: 100 MHz
- 200 MHz clock
- 50 MHz clock
- 161.13 MHz clock
Environment: - Physical dimensions: 3/4 length, standard height PCIe
- Power consumption: <10W with uninitialized FPGA
- Operating temperature: 0 – 55°C, 30 – 130°F
- Operating humidity: 20 – 80%
- Hardware compliance: RoHS, CE
- Active cooling (heat sink with fan)
- Passive cooling (optional)
Additional Board Support: - On-board power and temperature sensors
- Board status LEDs
- User configurable dual color LED
- FPGA controlled Link and Activity LED for each port
- PPS clock synchronization connector
- PCIe AUX power connector and cable
Additional Intellectual Property Modules: - Flash configuration I/F
- 2×8 lane PCIe
- DDR4 Memory controller
- I2C controller
- SmartNIC framework (optional)
- Ultra low latency 10GE MAC (optional)
- TCP-offload engine (optional)
Ordering Example: fb4CGg3@VU09P-3-SS-1A
4-port card with the following configuration:- VU09P Virtex UltraScale+ FPGA
- Speedgrade -3 (fastest available)
- 288 Mb x36 SQIVe RAM mounted in SoDimm slot A
- 288 Mb x36 SQIVe RAM mounted in SoDimm slot B
- SMA connector for PPS signal on front panel
- Heat sink with integrated UL/CE approved fan
-
訂購資訊
fb4CGg3@VU series FPGA Card
Quad Port QSFP28 100 Gigabit Xilinx® Virtex Ultrascale
P/N
Description
fb4CGg3@VU080-2-00-1A Virtex UltraScale VU80-2, No SODIMMs fb4CGg3@VU080-2-DD-1A Virtex UltraScale VU80-2, 2x4GB DDR4 SODIMMs fb4CGg3@VU125-2-00-1A Virtex UltraScale VU125-2, No SODIMMs fb4CGg3@VU125-2-DD-1A Virtex UltraScale VU125-2, 2x4GB DDR4 SODIMMs fb4CGg3@VU190-2-00-1A Virtex UltraScale VU190-2, No SODIMMs fb4CGg3@VU190-2-DD-1A Virtex UltraScale VU190-2, 2x4GB DDR4 SODIMMs fb4CGg3@VU07P-2-00-1A Virtex UltraScale+ VU7P-2, No SODIMMs fb4CGg3@VU07P-2-DD-1A Virtex UltraScale+ VU7P-2, 2x4GB DDR4 SODIMMs fb4CGg3@VU09P-2-00-1A Virtex UltraScale+ VU9P-2, No SODIMMs fb4CGg3@VU09P-2-DD-1A Virtex UltraScale+ VU9P-2, 2x4GB DDR4 SODIMMs fb4CGg3@VU09P-2-RR-1A Virtex UltraScale+ VU9P-2, 2xQDRII RAM (x36, 288Mb) fb4CGg3@VU09P-3-00-1A Virtex UltraScale+ VU9P-3, No SODIMMs fb4CGg3@VU09P-3-DD-1A Virtex UltraScale+ VU9P-3, 2x4GB DDR4 SODIMMs fb4CGg3@VU09P-3-RR-1A Virtex UltraScale+ VU9P-3, 2xQDRII RAM (x36, 288Mb)
